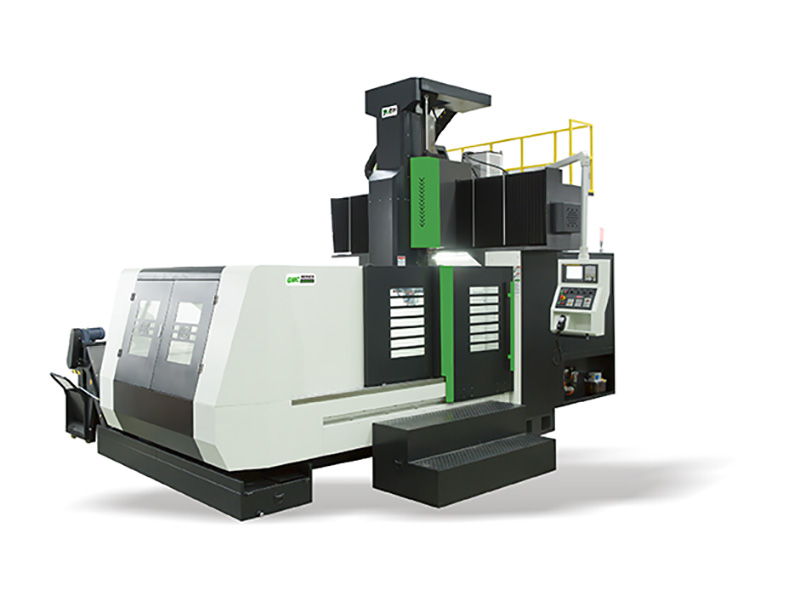

Longmen processing center GMC3018
Publish：2019-02-19 Click：400
| GMC series longmen machining center parameters | ||
| type | unit | GMC3018 |
| route or distance of travel | ||
| X-axis stroke | mm | 3000 |
| Y axis stroke | mm | 1800 |
| Z axis stroke | mm | 1000 |
| Distance between two columns (door width) | mm | 1800 |
| Distance from the nose of the main shaft to the working table | mm | 150-1150 |
| staging | ||
| bed dimension | mm | 3000*1600 |
| T-slot size (number of slots * width * spacing) | mm | 9*22*180 |
| Maximum average workbench load | kg | 7000 |
| principal axis | ||
| Spindle distance (selection) | type | BT50 |
| Spindle form (selection) | type | The Belt (gear /ZF) |
| Spindle rotation (selection) | rpm | 6000 |
| Spindle motor (continuous/ 30min) | kw | 22 |
| feed | ||
| Mistrial rapid movement | m/min | 12/12/10 |
| Cutting feed speed | mm/min | 10-10000 |
| precision | ||
| positioning accuracy | mm | ±0.005/300 |
| repeat ability precision | mm | ±0.006 |
| Automatic tool change form | The knife arm type | |
| Number of cutting tools (selection) | T | 24(32/40) |
| Maximum knife weight | kg | 18 |
| other | ||
| Pressure demand | kg | 7 |
| Power demand | KVA | 60 |
| Mechanical dimensions (long * wide) | mm | 8000*3800 |
| Mechanical height | mm | 4000 |
| Maximum weight of machine | kg | 27500 |
